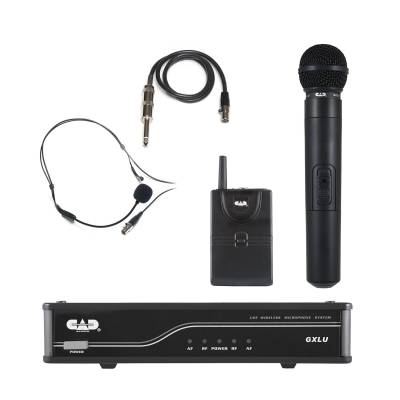

CAD Audio UHF Wireless Combo System - Handheld and Bodypack Microphone System - K Frequency Band

CAD Audio UHF Wireless Combo System - Handheld and Bodypack Microphone System - K Frequency Band

  • $312.00
    Unit price per


GXLU Dual Channel WIRELESS Features:

• Two discrete channels of wireless packaged in one receiver chassis.
• Compact discrete antenna that recess when not in use.
• Each channel has RF and AF indicator lights that indicate the presence of connectivity and audio source.
• UHF Frequency Operation
• Three output options on the receiver for maximum performance and flexibility of use.
- Professional balanced XLR discrete
- Professional balanced XLR mixed output
- Professional 1/4 inch output for easy output to a guitar amp or mixer equipped with 1/4 inch input connections.
Handheld transmitter outfitted with mute and on positions for flexibility of use.
Battery life of > 10hrs.
Handheld transmitter features battery life indicator.
All Bodypack systems ship with WXGTR guitar cable and WXHW condenser headworn mic included in the system.

Specifications:

GXGXLU Receiver
Frequency Band: UHF
Frequency Response: 50Hz 18KHz
Dynamic Range: > 105 dB
Sensitivity: -105 dB (12dB SINAD)
Output Connectors: (2) XLR Balanced, 1 TRS 1/4"

TXGXLUB Body Pack Transmitter
Transmit Power: 10mW
Power Requirements: "AA" size alkaline or rechargeable batteries
Battery Life: > 10 hours (alkaline)
Connector: Accepts TA4F-type

TXGXLUH Handheld Transmitter
Operating Principal: Dynamic Unidirectional Capsule
Sensitivity: -33 dBV (22mv) @ 1Pa
Transmit Power: 10mW
Power Requirements: "AA" size alkaline or rechargeable batteries
Battery Life: > 10 hours (alkaline)
